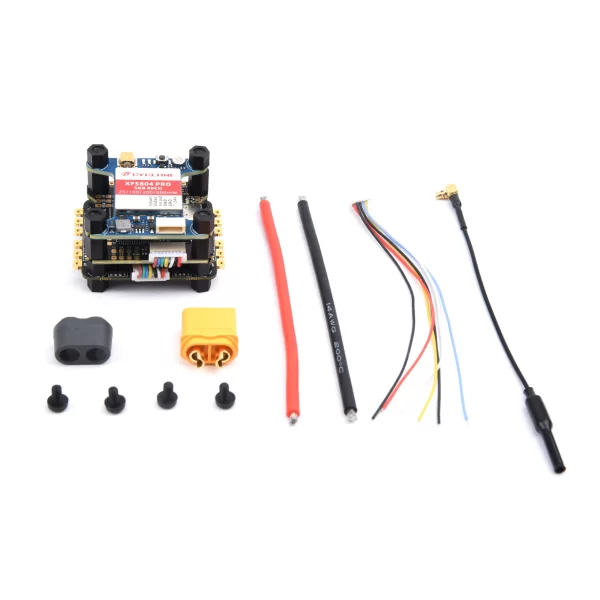

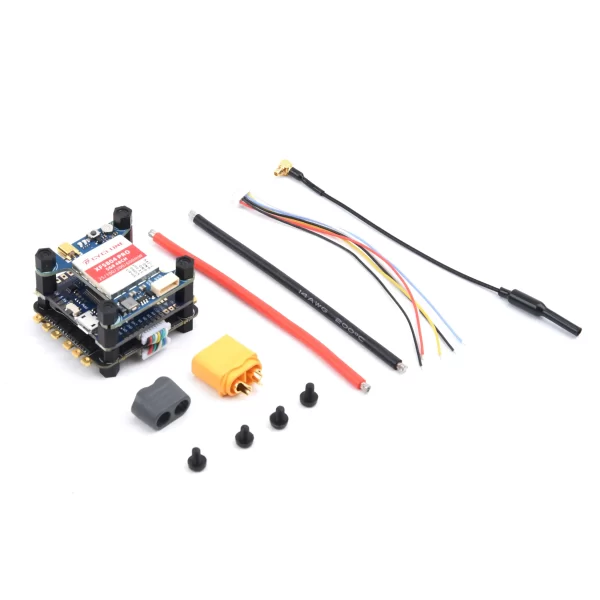

45A 4in1 ESC & F4 V3S Plus / F405 F4 V1.1 Flight Control / XF5804 PRO 48CH For FPV RC Racer Freestyle Drone


Out of stock



Out of stock

F4 V3S Plus Flight controller:

Item name: F4 V3 PLUS Flight Controller
Size: 36x36mm
Mounting holes: 30.5×30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
BMI270 / MPU6500 6 axis SPI gyro & accelerometer(send at random )

SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
5v3a 9V3A BEC
On-board video filters (only 5V to VTX and camera)
Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you’ll be tuning pids with your transmitter and
Tear it to the track in no time!


45A 4-in-1 ESC

Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm (3mm hole diameter after installing the shock-absorbing ball)
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PMW
Current sensor: Support

Model: XF5804 PRO

Operating temperature:
Input Voltage: 7-26V
Control Protocol: TBS SmarAudio
On-board BEC output: 5V
Antenna connector: MMCX
Number of transmit channels: 40
Wiring: SH1.0-6P/pad
Transmitting power: 25/100/200/600mW
Mounting hole: 30.5*30.5mm
Video format: PAL/NTSC Size: 36*36mm

SKU: 45a-3stack Categories: ,
