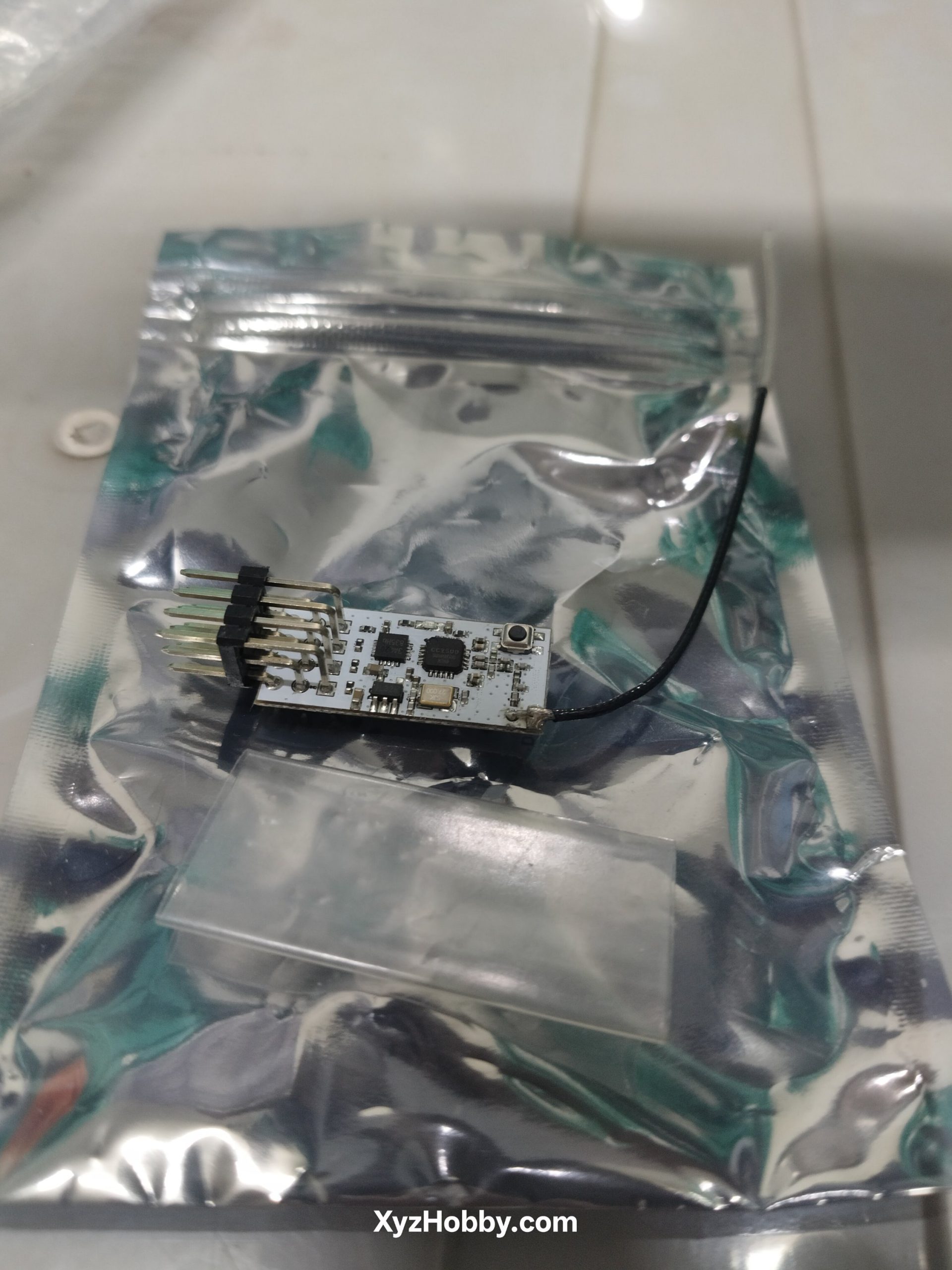

2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output

2.4G 4CH RC Receiver Compatible with D8 D16 With PWM Output for T16 X9D Transmitter

How To Bind:

Power the receiver, the led flashes slowly, press the bind button for about 1 second, the led will flashes quickly which indicates the receiver is in binding mode
Power on the remote control
Futaba double-leaf remote control (board control) choose S-FHSS system, (gun control) choose S-FHSS  or S-FHSS NORM system
Frsky remote control select D8/D16 system, set to enter bind mode
Jumper remote control select Frsky/FrskyX system, set to enter bind mode
Receiver status
Futaba double-leaf mode: The indicator light changes from flashing quickly to steady light, and the code is successfully matched
Frsky /jumper mode: The indicator light changes from fast flashing to slow flashing, the remote control exits Bind mode, the indicator light is always on, and the code matching is successful.

Signal output:

CH1-AIL (Aileron) CH2-ELE (Elevation) CH3-THR (Throttle) CH4-RUD (Direction)

Package Includes :

1× 2.4G 4CH RC Receiver Compatible with D8 D16 With PWM Output for T16 X9D Transmitter

Specification:-
