ZD550 Full Carbon Fiber quadcopter Frame
₹8,950.00
3 in stock
3 in stock
15
People watching this product now!
Description
ZD550 parameters
Motor base diagonal wheelbase is about 550mm, flat wheelbase is about 395mm, maximum support 15 inch paddle
The center board size 150*150mm space is bigger, the center board middle height is about 36mm, installs the flight control to be more convenient.
Hanging expansion board, height 45mm, width 45mm. You can put more things, including hanging Yuntai.
The tripod uses 16mm diameter carbon tube, height 260mm, tripod crossbar 330mm, more stable ground contact area.
The tripod connector is made of plastic and the maintenance cost is low. This rack does not break any part.
This shop has repair parts sales, eliminating the need to look after you die friend’s worries.
Recommended configuration: (not included)
QX-Motor 3508/4208 680kv (waterproof)
Hurricane Motor U3508
C.B.Q 1238 positive and negative paddle
Hoo-Platin Platinum 30A/Holiage Lotte 40A ESC
Lji ZD550 folding rack
4s 14.8v 5200mah LiPo
The measured flight time is about 20 minutes
Parameters:
– Diagonal wheelbase: 550mm
– Landing gear height: 260mm
– Weight: 630 ±2 g

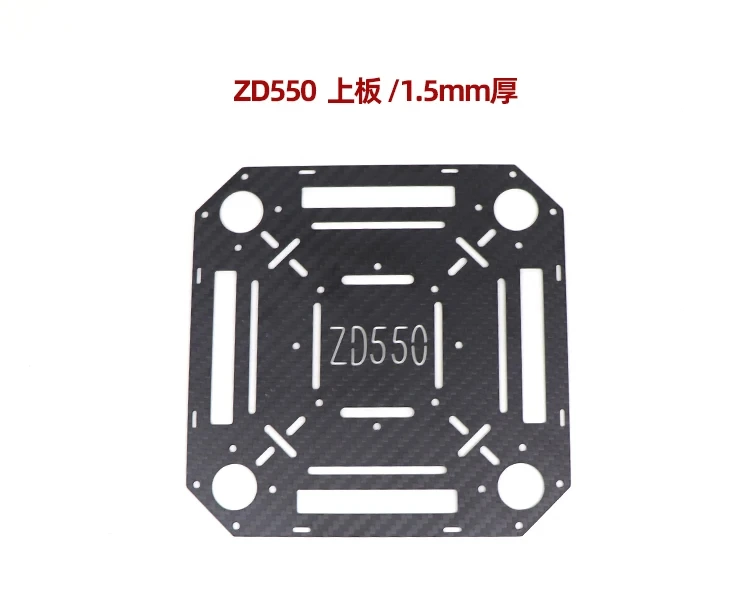

– Material of the main board : 3k full carbon fiber
– thickness of the main board : 1.5mm
Recommended configuration: (Not inlcuded)
– Motor: 3508
– Prop: 12-15 inch CW CCW
– ESC: 30A(2-6s) ; 40A (2-4S)
– Flight control: APM opensource flight control
– Battery: 4-6S Lipo

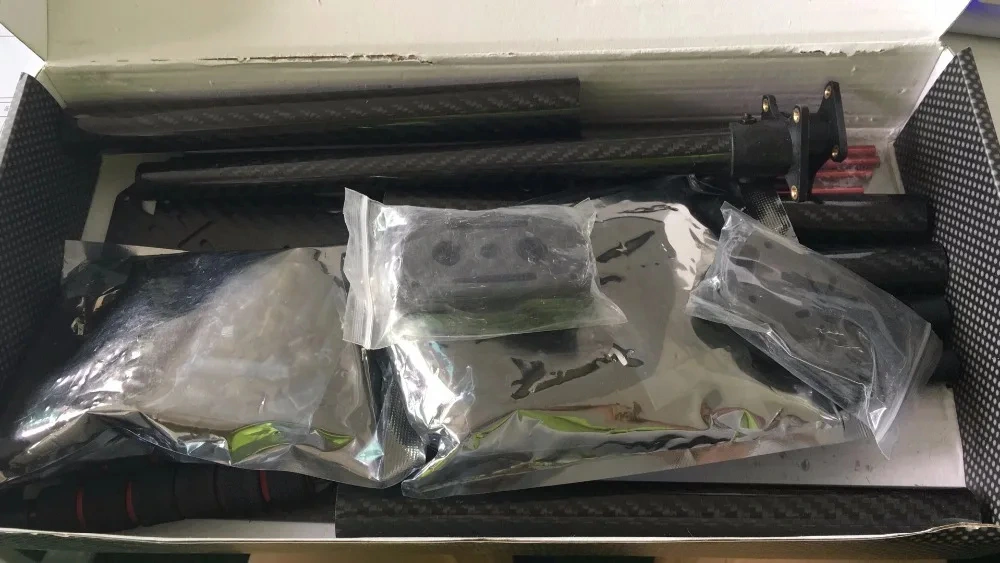

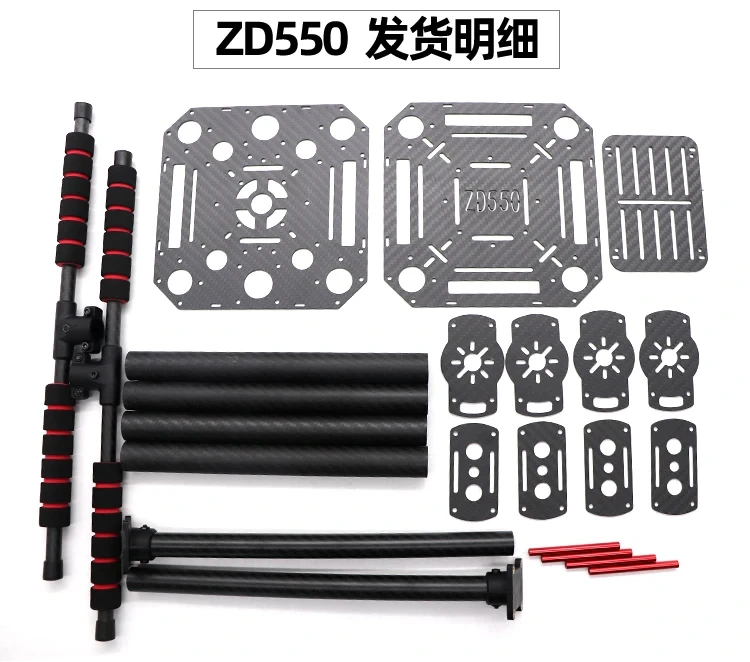

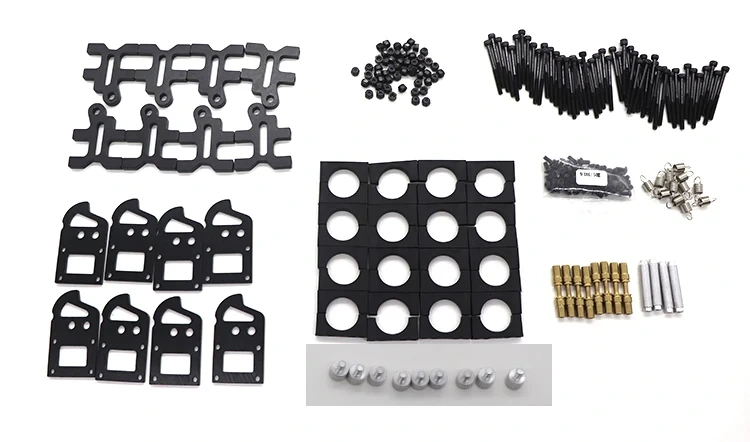

Package includes:
– Carbon Fiber Quadcopter frame kits x 1
– carbon fiber Landing gear x 1
