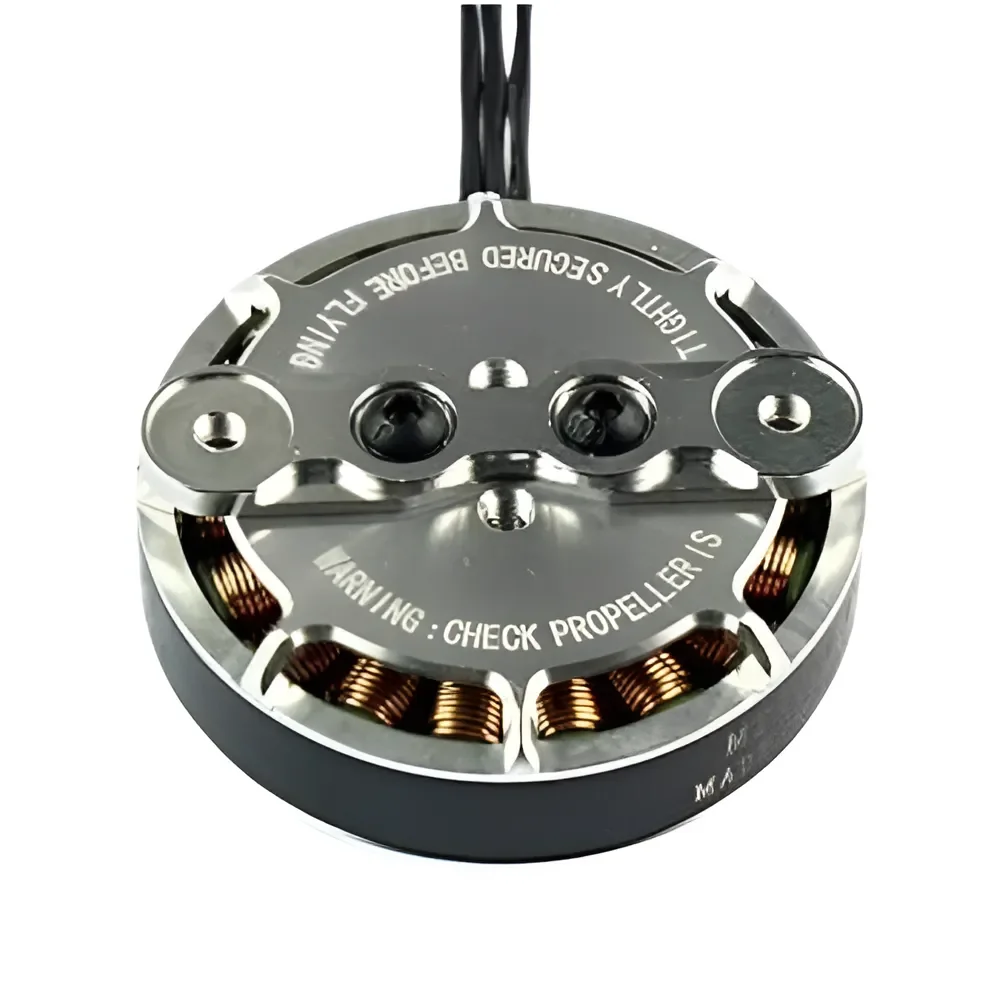

TAROT TL68P02 4006 620KV Multicopter Brushless Motor
17
People watching this product now!
Description
Specifications
- Motor diameter: 46MM
- Stator diameter: 40.6MM
- Stator thickness: 6MM
- Stator pole: 24 Port
- Motor pole: 22P
- Cable diameter: 0.23MM
- Gear axis installation diameter: 4MM
- Motor height: 22.0MM
- Motor cord length: 30.50MM
- RPM: 620RPM/ volt
- Motor Weight: 82G
- Internal Resistance: 126 mΩ
- 14.8V no load current: 0.8A
- 14.8V load current: 14A
- 4006 Motor mounting pitch: 27.7MM equilateral triangle installation.
Propeller installation:
- Hole diameter: 4mm (middle), 3mm (side),
- Distance from hole to hole: 12mm
- 4006/620KV Brushless Motor 82G x1
- M3x6MM Cup head screw x3
- M3x8MM Half Round screw x2
- Metal propeller installation plate 2.5Gx1

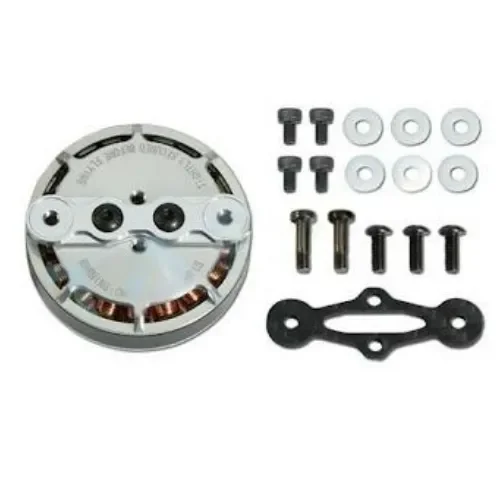

Package Includes:
- 1x Tarot 4006-620kv high power brushless motor
- 1x mounting
- 3x M3 x 6mm cup head screw
- 2x M3 x 8mm Half Round screw
