RadioMaster RP3 ExpressLRS V3.0 2.4ghz Nano Receiver

The RadioMaster RP series of receivers are designed with size, ease of use and range in mind. Utilizing ExpressLRS 2.4ghz Open-source firmware the RP series of nano receivers deliver features and range today pilots have come to expect.

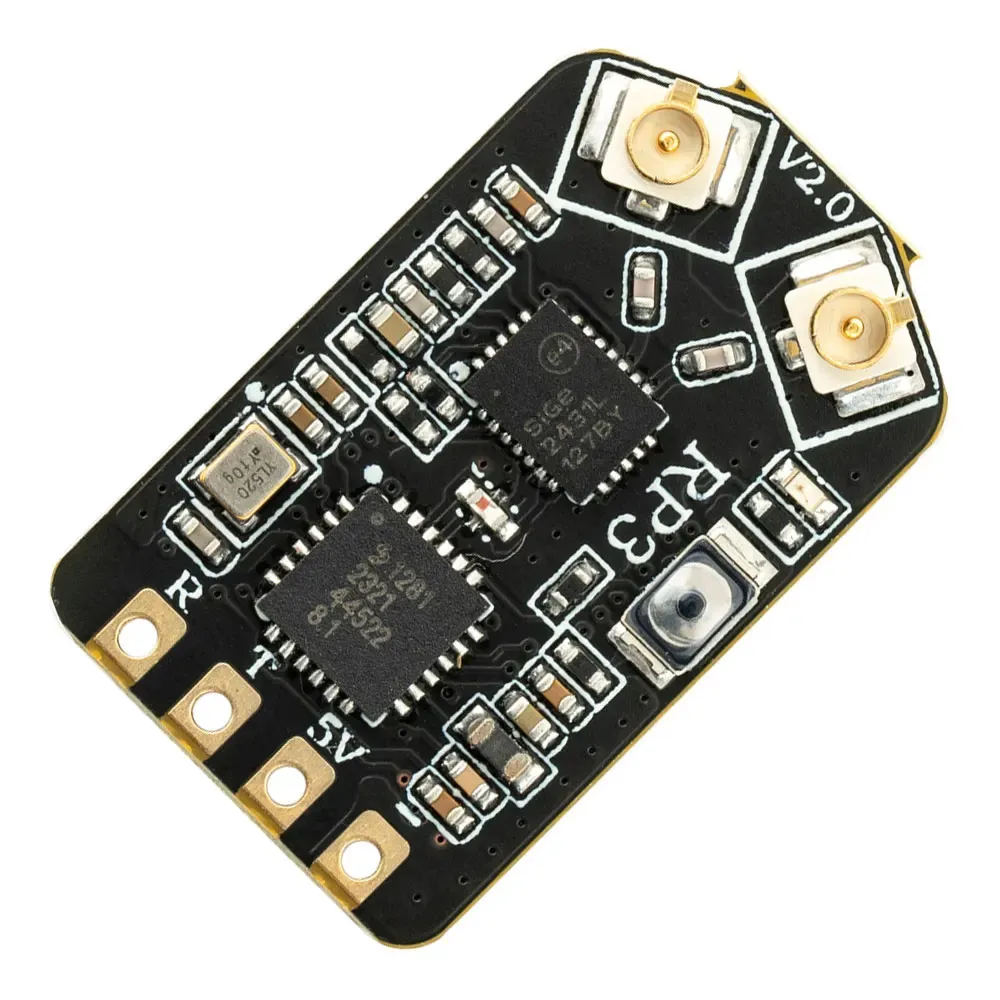

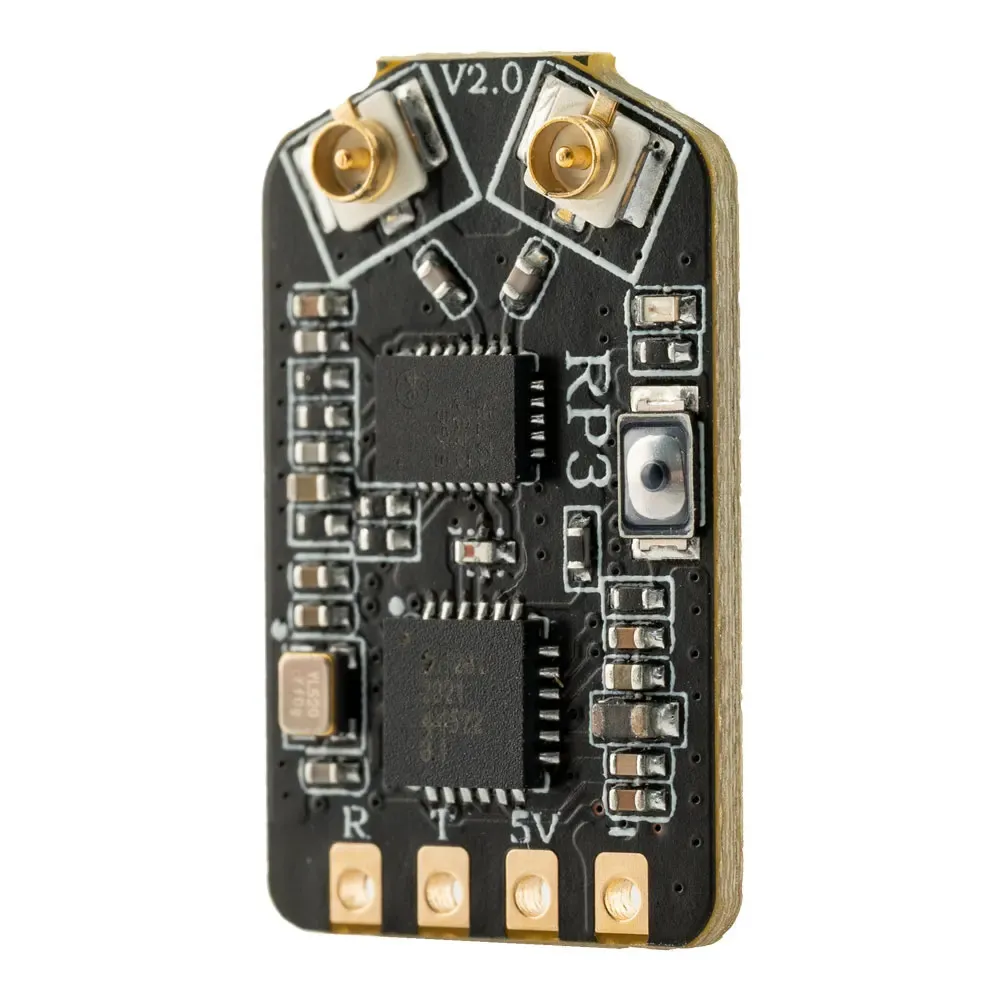

Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offer Lora and FLRC 2.4ghz RF links offering incredible range and low latency. With Wifi built in FW updates can be done on your craft without the need to remove the receiver. Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery.

The RP3 receiver features a Skyworks SE2431L providing an LNA for improved receiver performance, a PA providing up to 250mw of telemetry performance and antenna switching for antenna diversity.

Specifications

Item: RP3 Diversity Receiver

Type: ISM

MCU: ESP8285

RF Chip: SX1280IMLTRT

Telemetry RF power: max 100mw

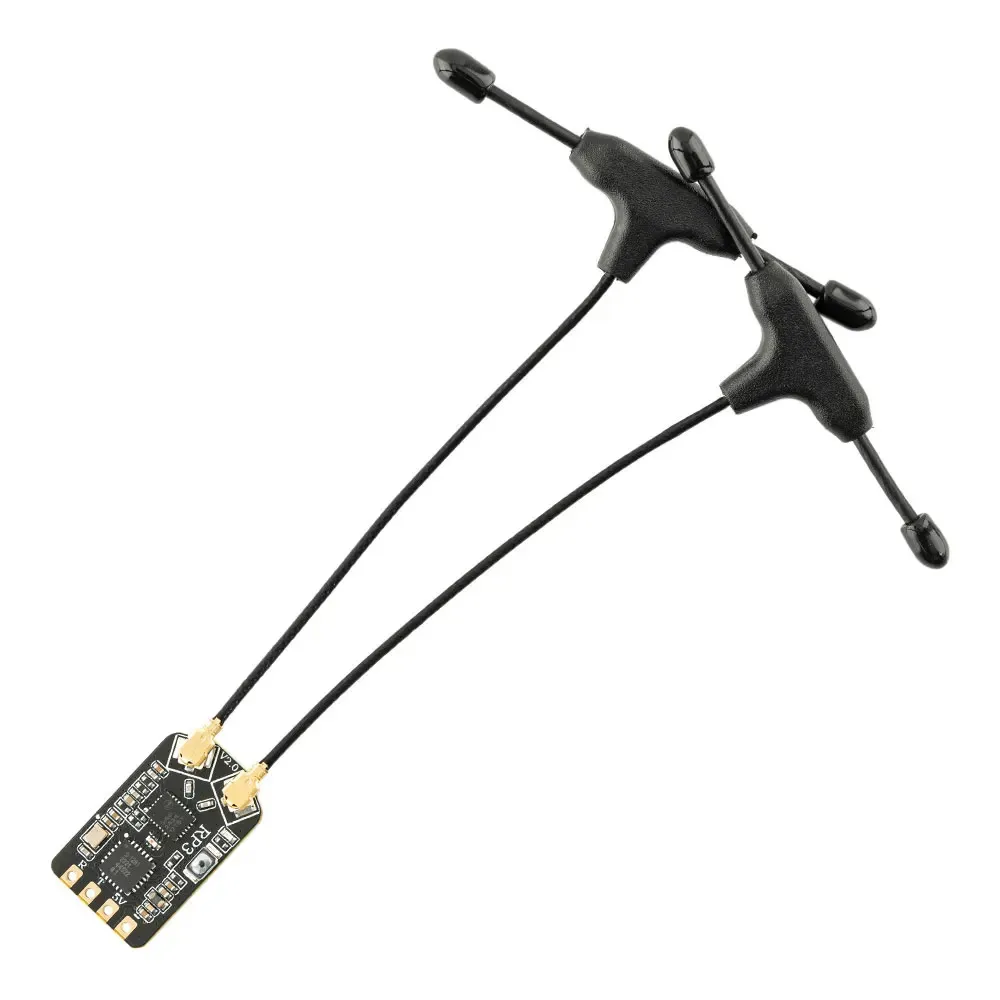

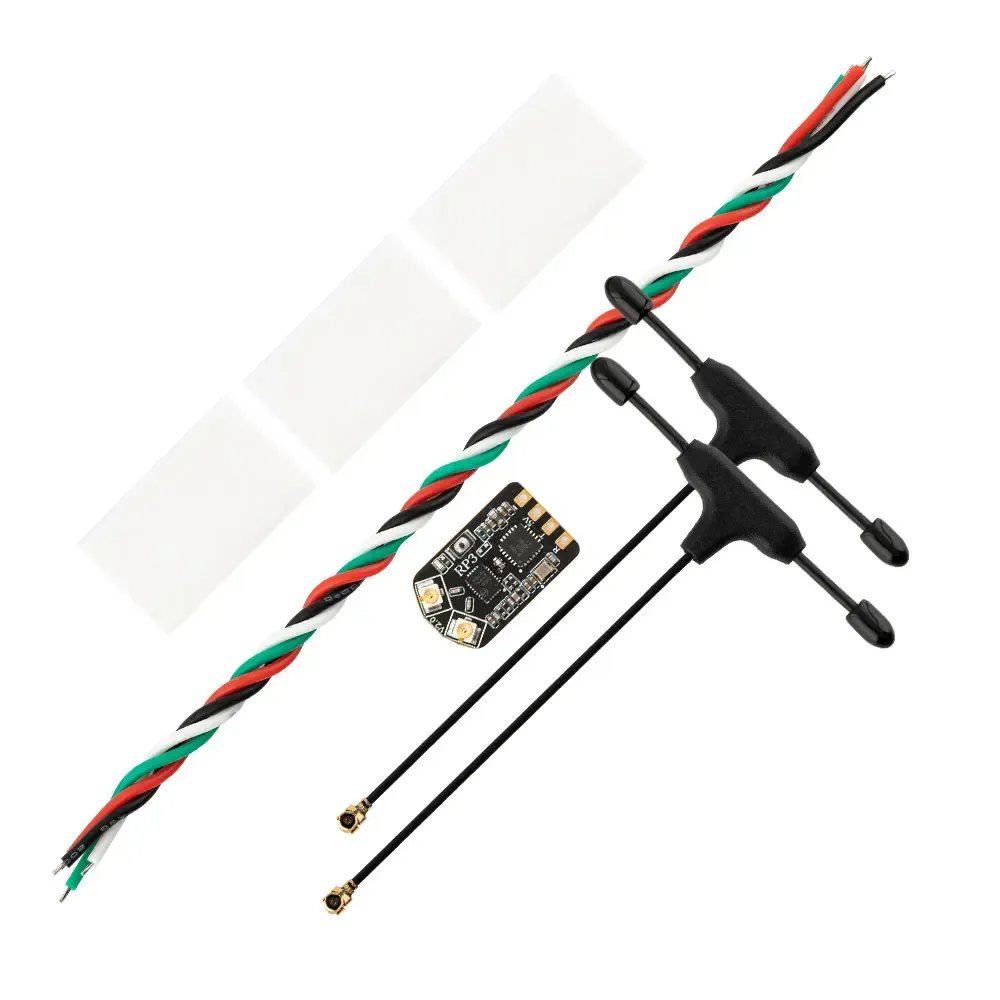

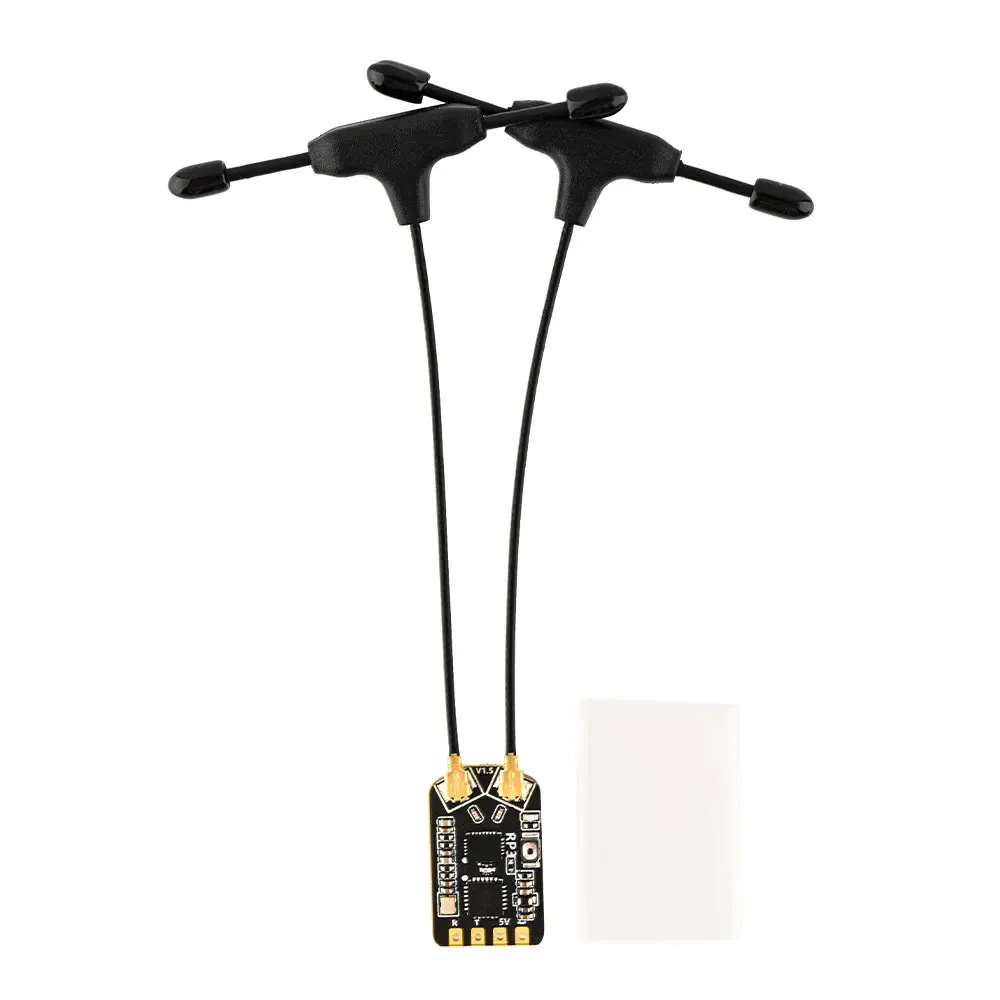

Antenna: 65mm 2.4ghz T Antenna x 2

Frequency Range: 2400 MHz to 2480 MHz

Maximum receive refresh rate: 500Hz / F1000Hz

Minimum receiver refresh rate: 25Hz

Working voltage: 5v

Weight: 4.6g (Including two antenna)

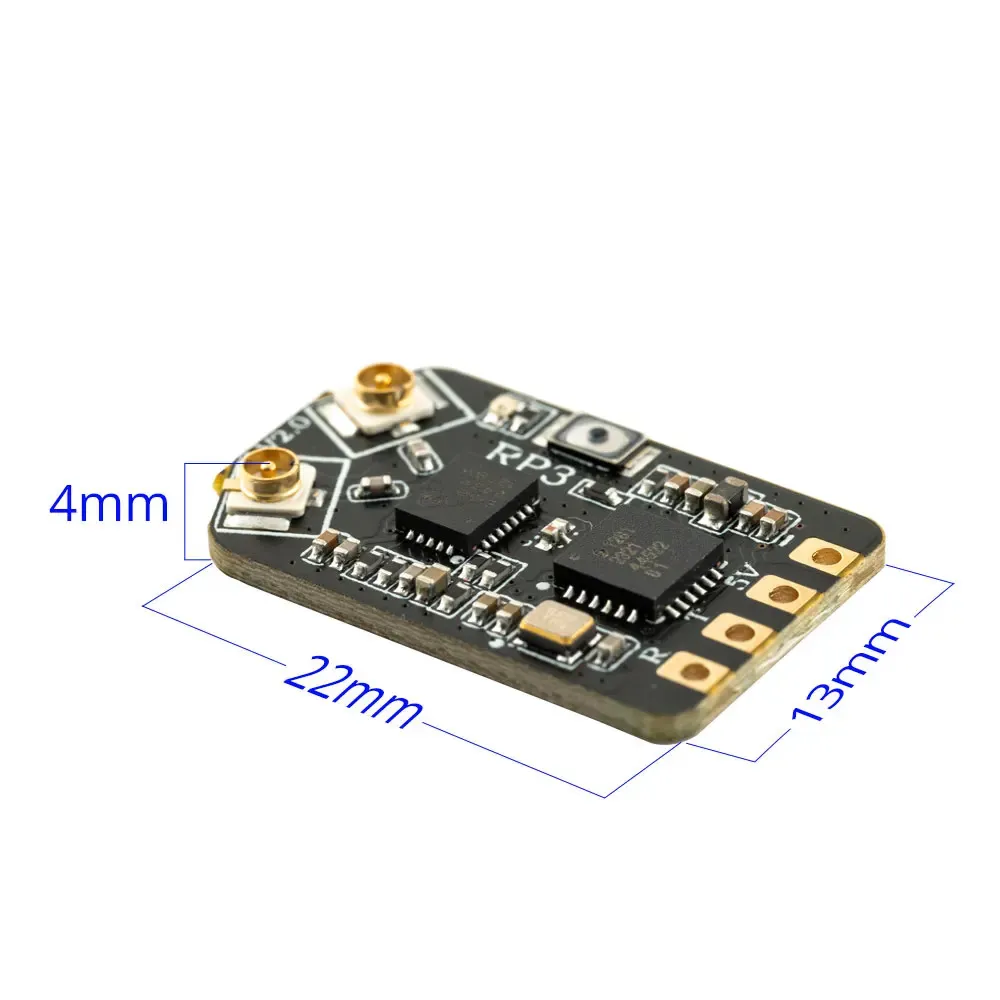

Dimension: 22mm*13mm*4mm

Firmware Version: ExpressLRS v3.0 pre-installed

FW Target: RadioMaster RP3 Diversity 2400 RX

Bus interface: CRSF

RP3 Key Features

★OptimisedPCBdesignfor betterforheatdissipation.

★LNA for better Receiver range.

★ PA for better telemetry range.

★Antenna Diversity for improved signal stability and range.
