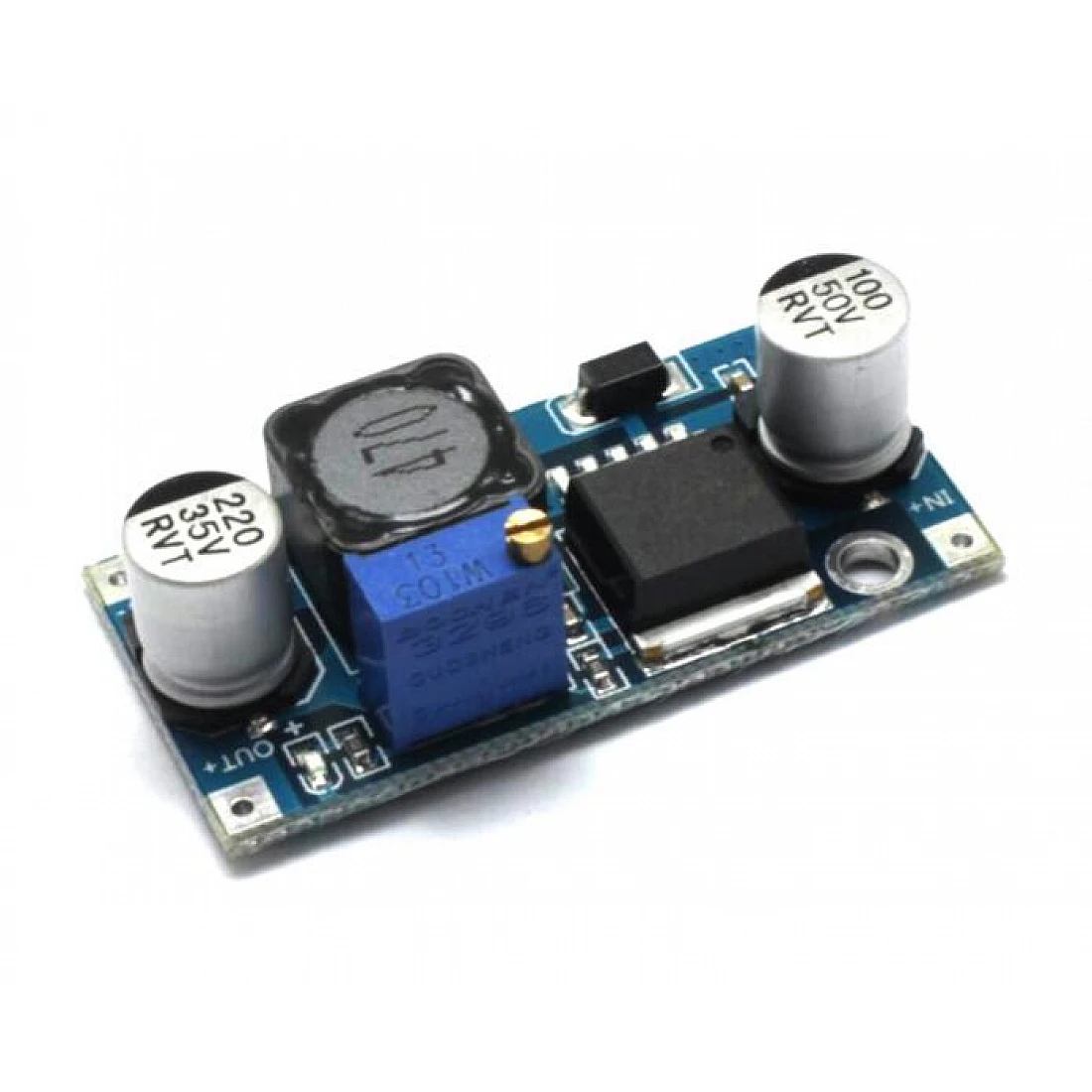

LM2596 3A DC to DC Step Down Adjustable Voltage Regulator

This is an LM2596 DC-DC step-down converter with the high-precision potentiometer, capable of driving a load up to 3A with high efficiency, which can work with an Arduino nano, Arduino UNO, other mainboards and basic modules. When the output current keeps greater than 2.5A (or output power greater than 10W), please add a heat sink to it.

General :

• Color                  :    Deep Blue | Green

• IC                        : LM2596

• Material             : Aluminum alloy + PVC + PCB

Specification :

• Module nature BUCK
• Rectifier nonsynchronous
• Input voltage 4.5~40V
• Output voltage 1.3~35V
• Output current 3A (Max.)
• Transfer efficiency 92% (Max.)
• Switch frequency 150KHz
• Output ripple 30mV
• Load regulation +/-0.5%
• Voltage regulation +/-2.5%
• Voltage regulation +/-2.5%
• Voltage regulation +/-2.5%
• Dimension 1.73 in x 0.83 in x 0.55 in (4.4 cm x 2.1 cm x 1.4 cm)
• Weight 0.39 oz (11 g)

Package Includes:

1 x LM2596 3A DC to DC Step Down Adjustable Voltage Regulator.
