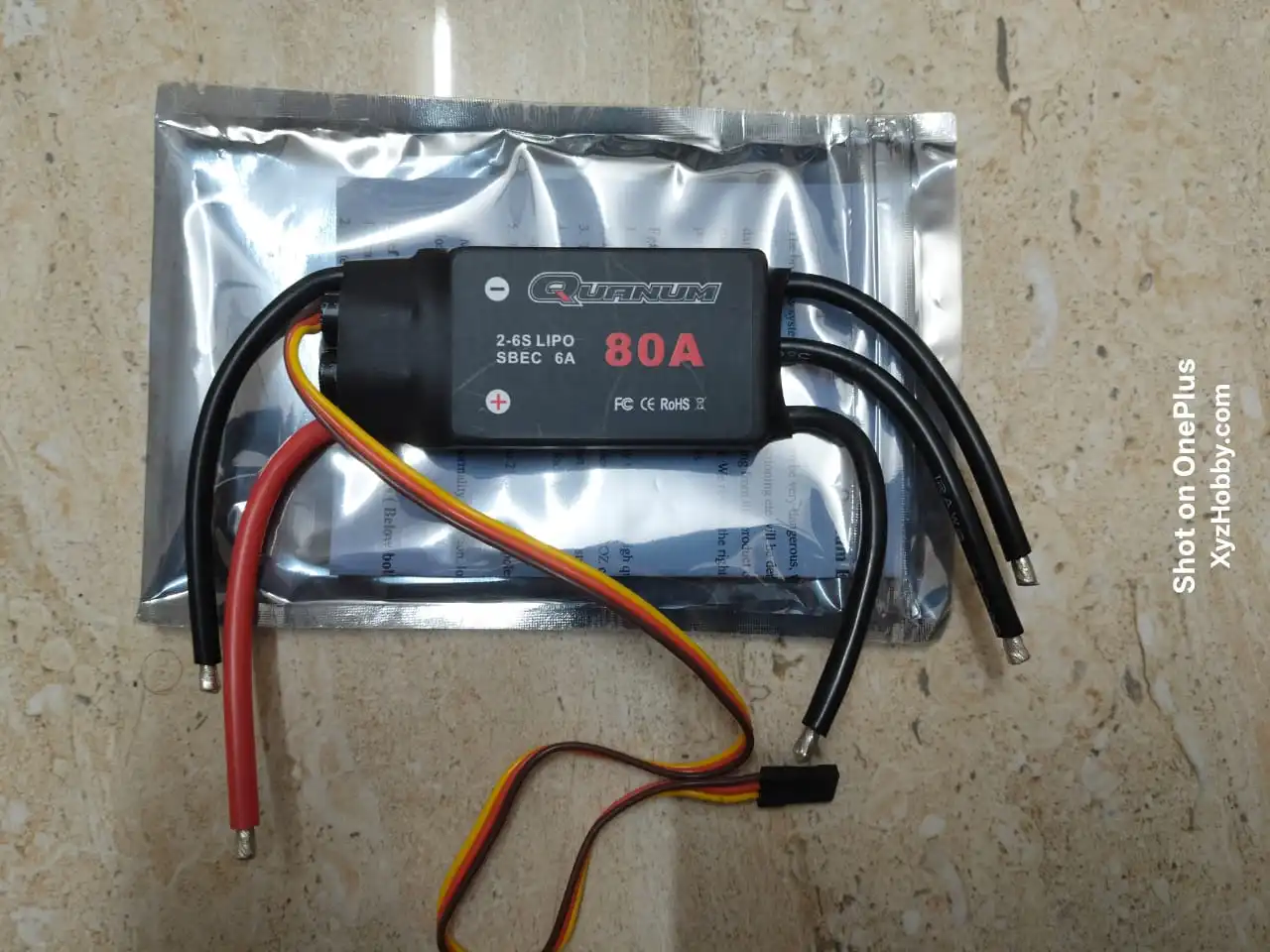

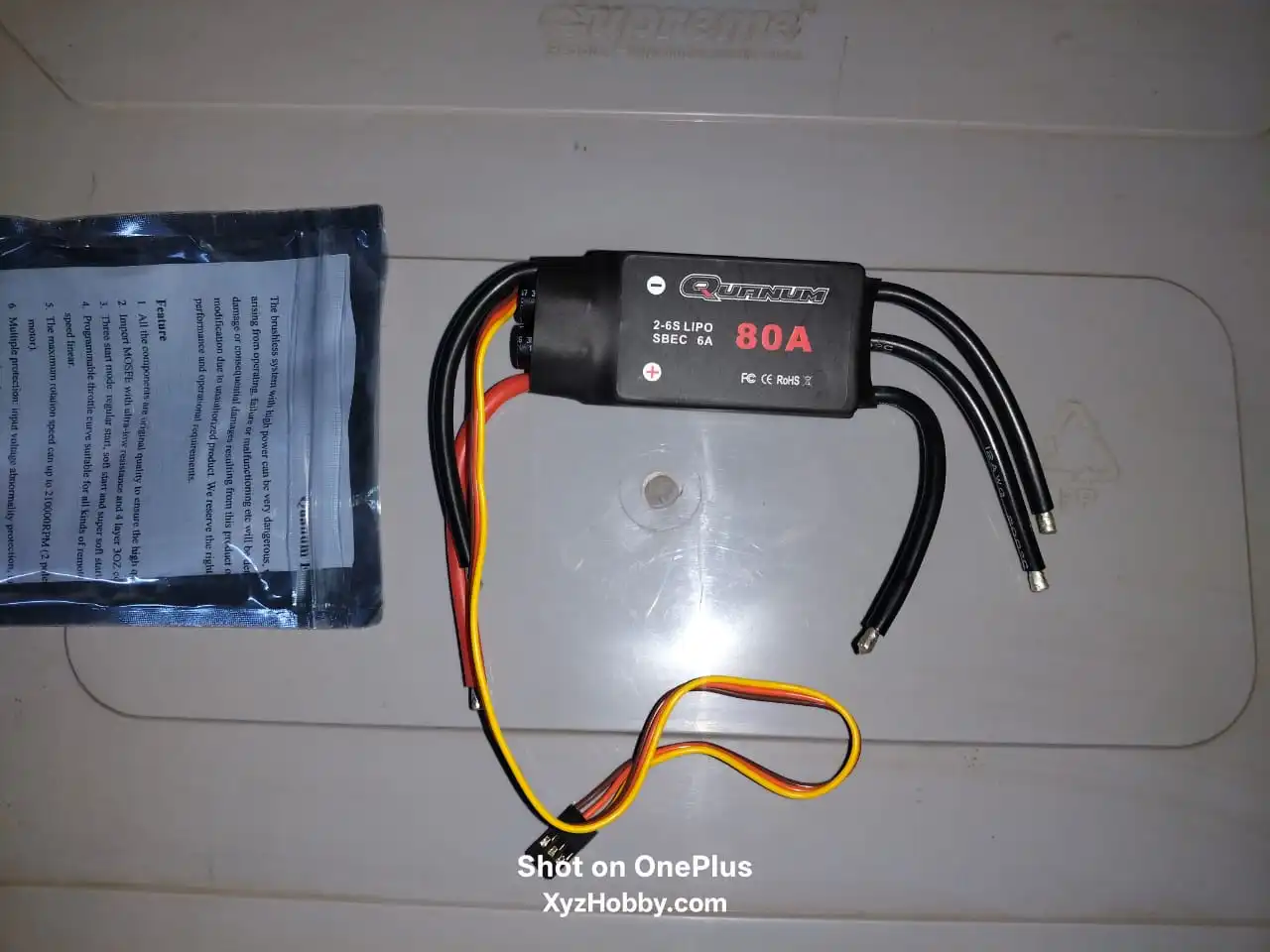

DYS Quanum 80A/ 100A ESC(SBEC) (1 Pcs)

This Quanum 80A electronic speed controller is designed to make electric flying easy, reliable and cost effective. Designed with reliability in mind, the Quantum II ESC uses high-quality components and works right out of the box.

It’s “plug and play” out of the box and works without programming, but can be programmed using a “Beep” audio system or a Quanum II ESC program card, but not required for normal use. Programmable features include brake (on/off), battery type (NiMH/LiPo), undervoltage lockout (low/medium/high), motor timing (low/medium/high), acceleration start mode (soft/ medium/hard). ), controller (off/on), and motor rotation (forward/reverse).

Supports new generation HV Li-Pos (4.35 V peak voltage)

Pre-soldered and ready to use with most common connectors. Comes with XT90 for battery and 4.0mm gold bullets for the motor.

DYS Fixed Wing Brushless ESC Quanum Series Specs

BEC – 5V/6A

Continous Current: 80A

Peak Current: 100A

Battery Input – 2-6 Lipos

Weight: 73g

Size: 62mm x 35mm x 12
