CUAV NEO V2 GPS

SKU: neo-v2

12,500.00

1 in stock

1 in stock

19 People watching this product now!

Description

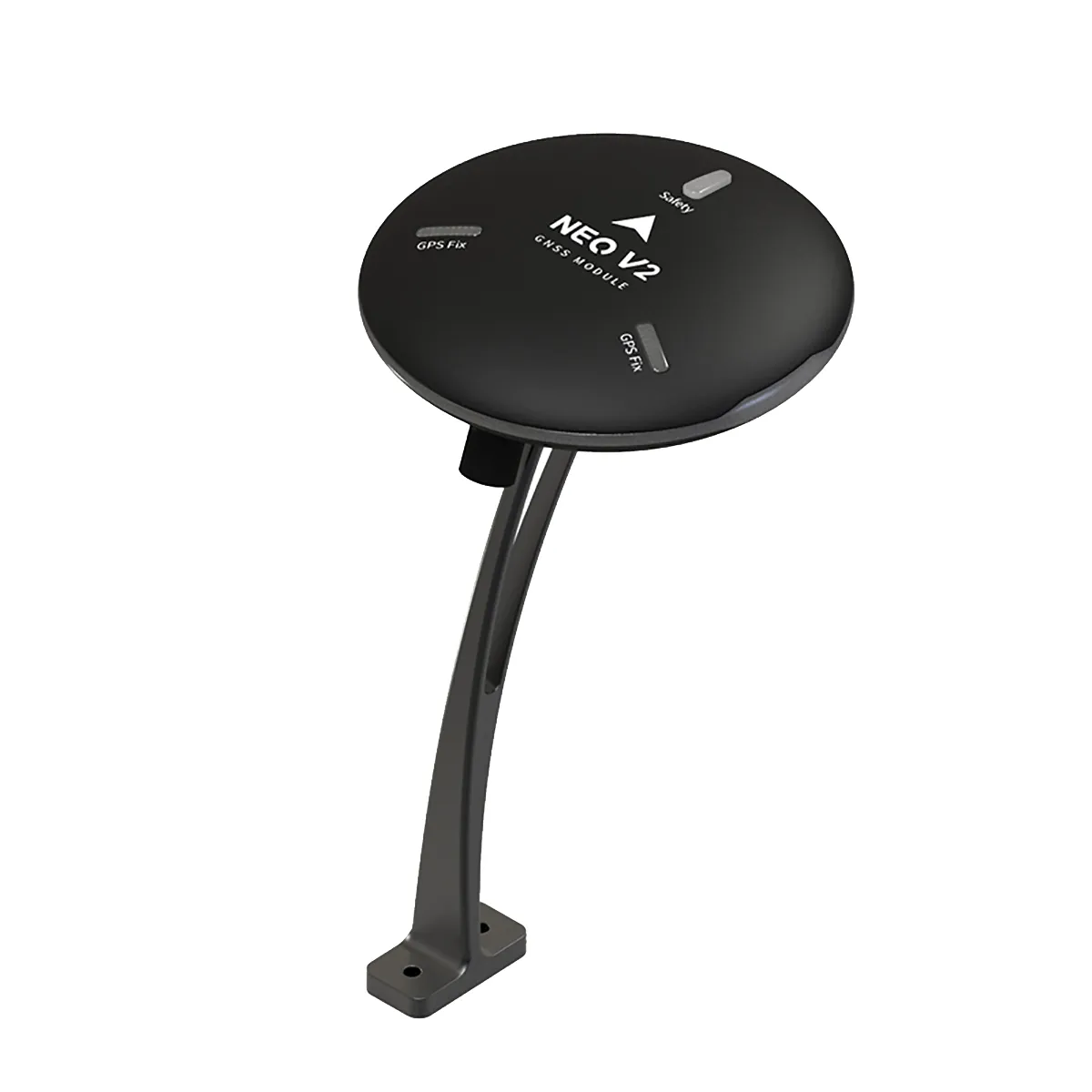

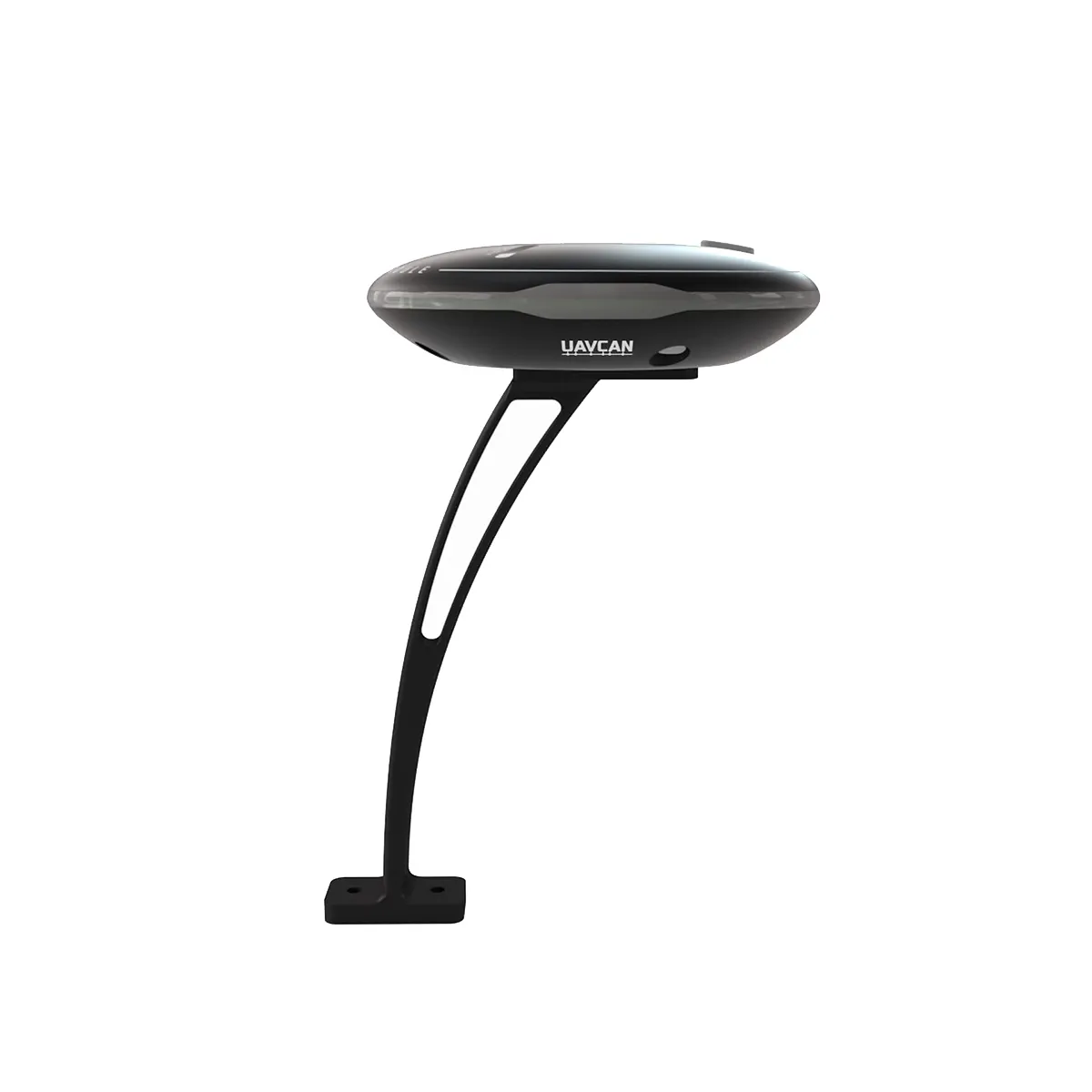

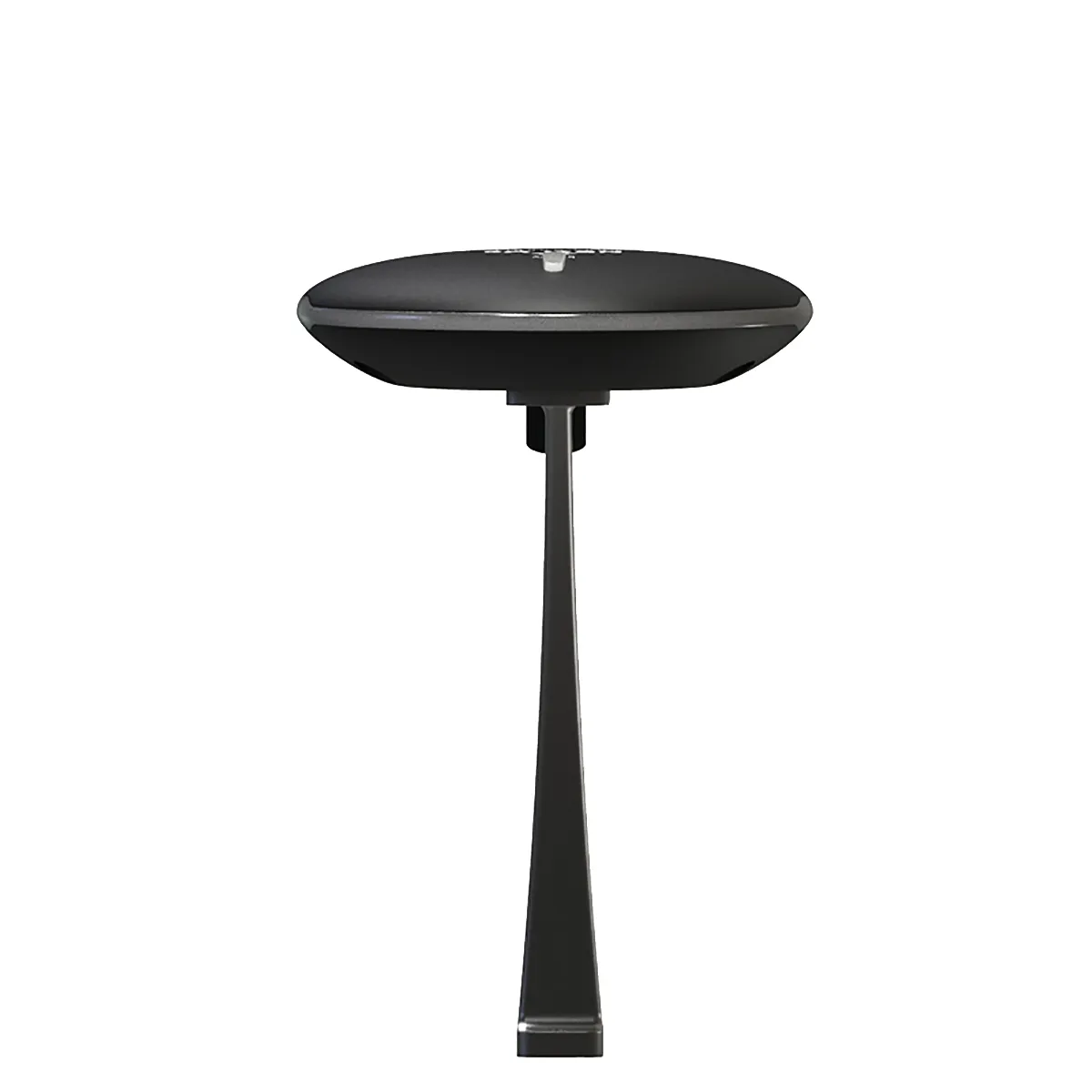

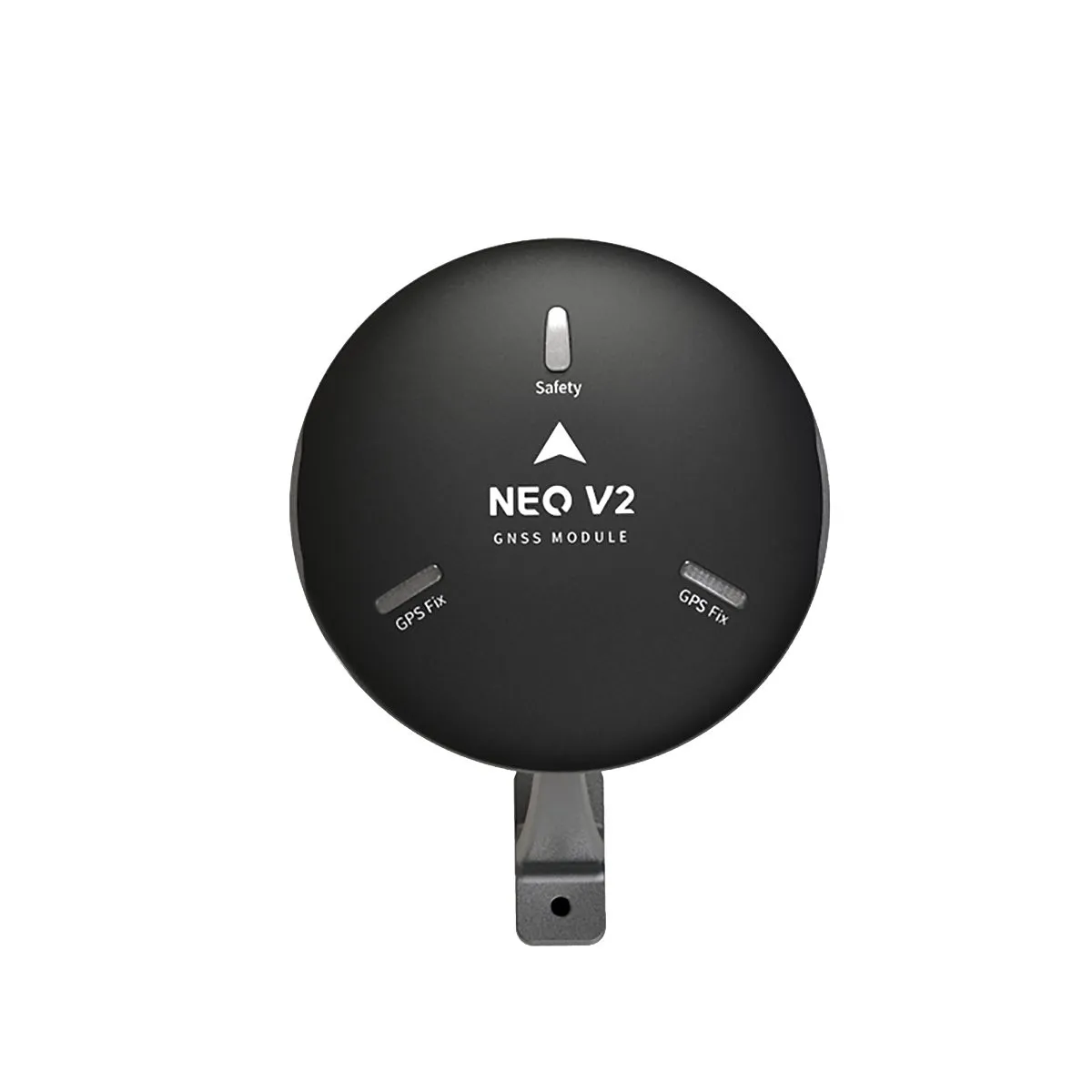

CUAV NEO V2 GPS Drone GNSS Module is a cost-effective unmanned system positioning and navigation module, which integrates a compass, flight controller status light, buzzer, and safety switch; it has the characteristics of high sensitivity and strong anti-interference.

Product Features

  • GPS positioning: provide accurate positioning information for unmanned system equipment
  • Electronic compass: provide accurate heading and attitude information
  • FC status reminder: circular RGB display flight control status
  • Alarm function: Provide an alarm when the drone has information that threatens safe flight
  • Safety protection: Provide physical buttons to avoid accidental motor rotation and protect you and the equipment

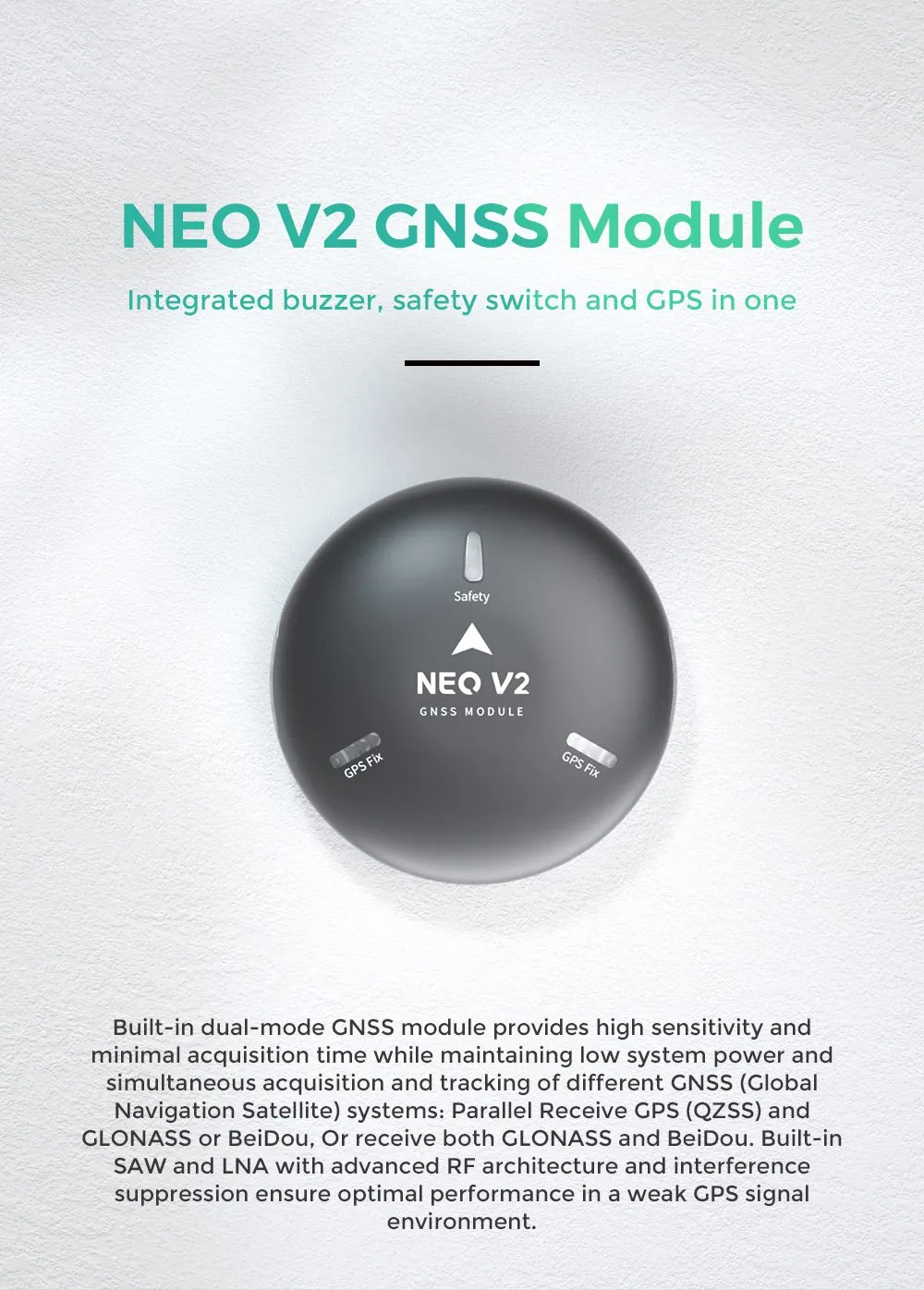

  • CUAV NEO GPS 2 is a GNSS positioning system, integrating dual-mode GNSS, safety switch, RGB status light, and electronic compass in one to make the drone lighter. It designed for the V5 flight control platform. It also has the characteristics of high security and strong anti-interference. Built-in dual-mode GNSS module, SAW, LNA and advanced RF architecture and interference suppression.

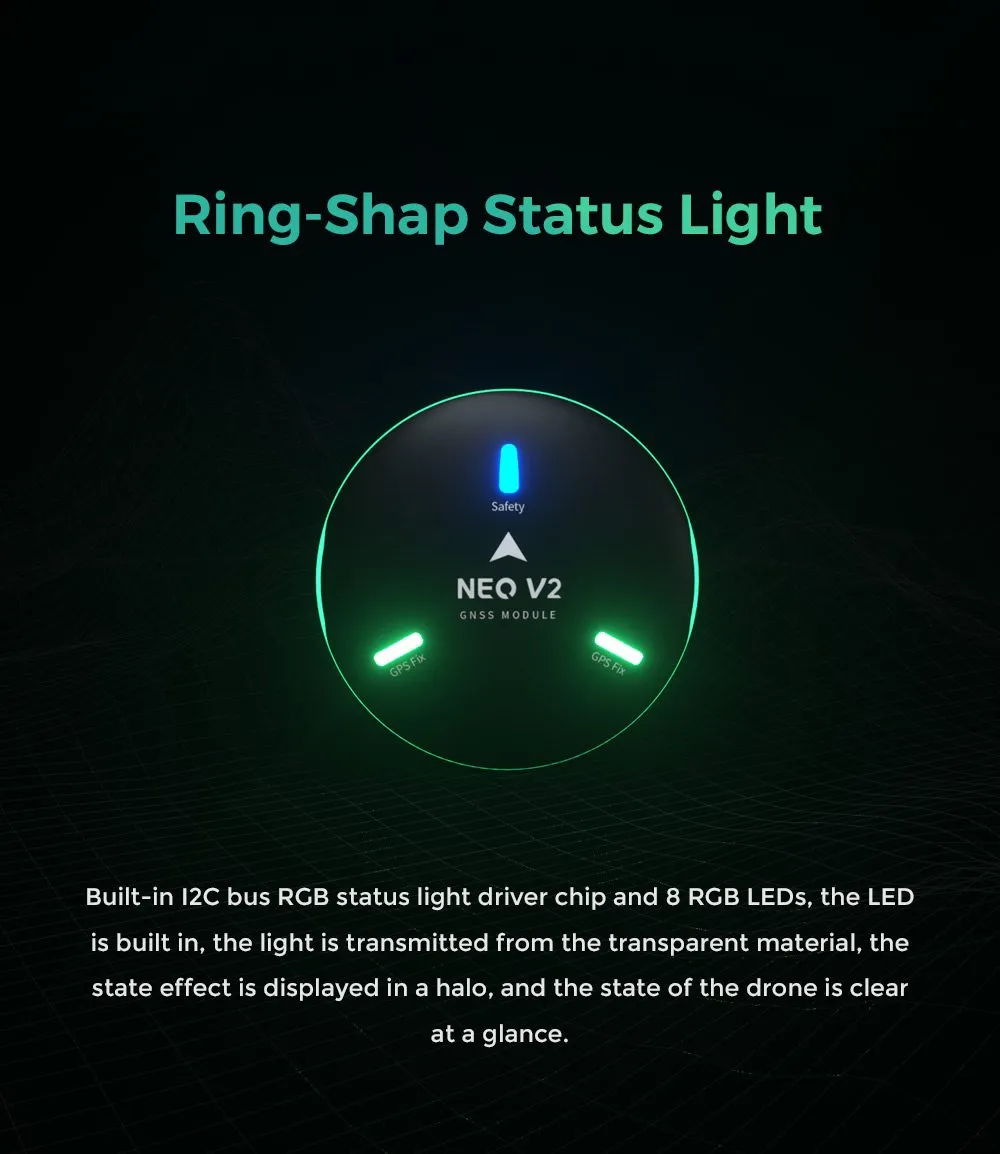

  • CUAV NEO GPS 2 Open Source GPS adopts built-in I2C bus RGB status light driver chip and 8 RGB LEDs. After careful design, the L ED is built in, the light is transmitted from the transparent material.
  • NEO V2 GNSS Module GPS location: UBLOX M8N

Flight control parameter setting

Neo 2 is a plug-and-play module without parameter settings.



Processor STM32F412
Compass IST8310
GNSS receiver UBLOX NEO M8N
RGB drive NC5623C
Buzzer Passive buzzer
Safety switch Physical button
GNSS Beidou、Galileo、 GLONASS、 GPS
GNSS Augmentation System SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF) other:RTCM3.3
Number of concurrent GNSS 2(Default GPS+GLONASS)
Frequency band GPS:L1C/A GLONASS:L10F Beidou:B1I Galileo:E1B/C
Horizontal accuracy 2.5M
Speed accuracy 0.05M/S
Nav. update rate 10Hz(Max)
Acquisition Cold start:24S Hot start:1S Aided start:2s
Number of satellites(MAX) 22+
Sensitivity Tracking and nav-167dBm Cold start -148dBm Hot star–157dBm Reacquisition -160dBm
Protocol UART+IO+I2C
Port TYpe GHR-10V-S
Supported flight controller CUAV series, Pixahwk series
Wave filtering SAW+LNA+SAW
Anti-Electromagnetic/radio frequency interference EMI+RFI
Upgrade firmware support
Support Flight control type Ardupilot/PX4*(PX4 is still working hard to adapt to the clock) Pixhawk
Input voltage 5V
Operating temperature -10~70℃

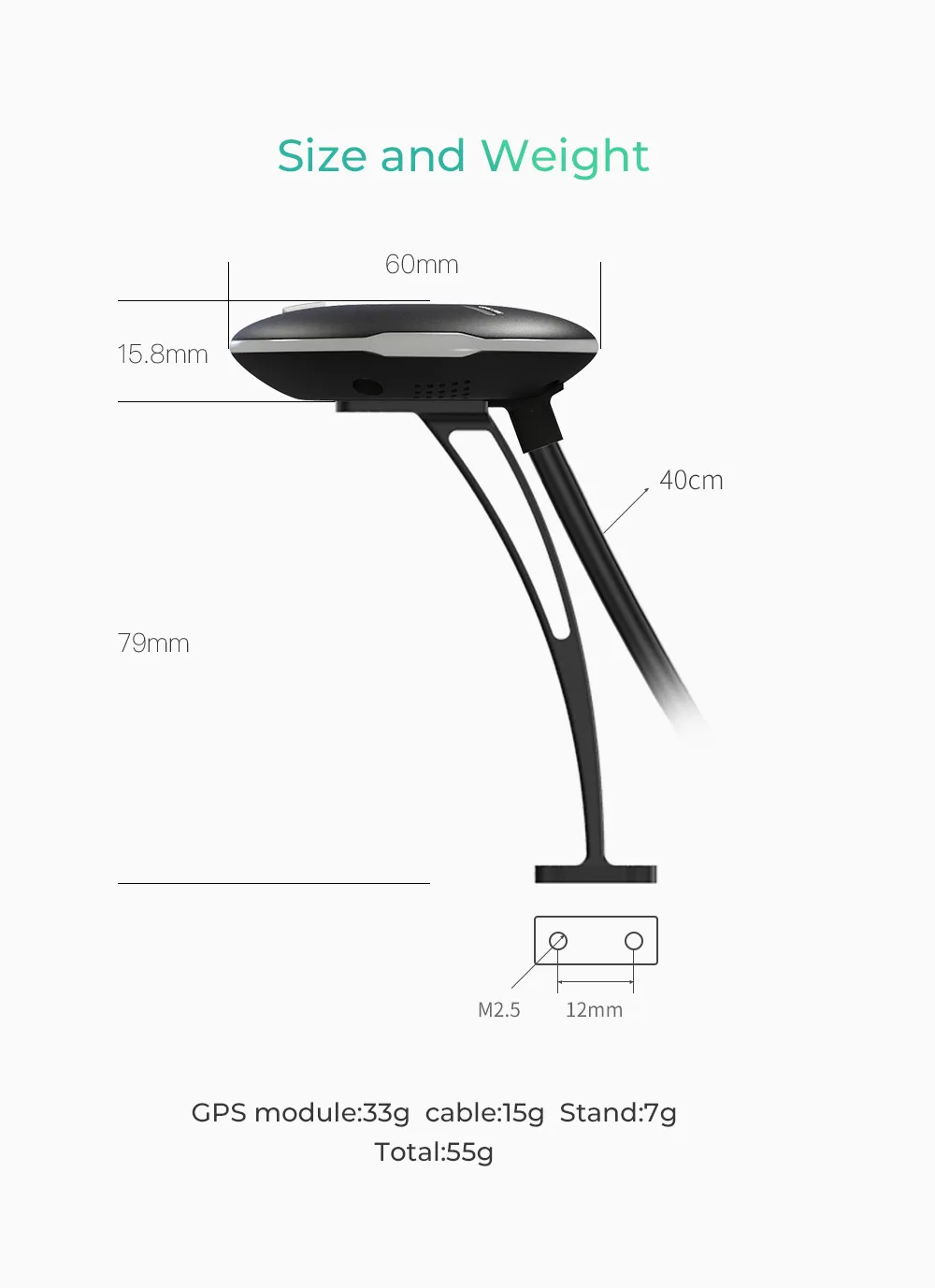

Size 60*60*16MM
Weight 33g
